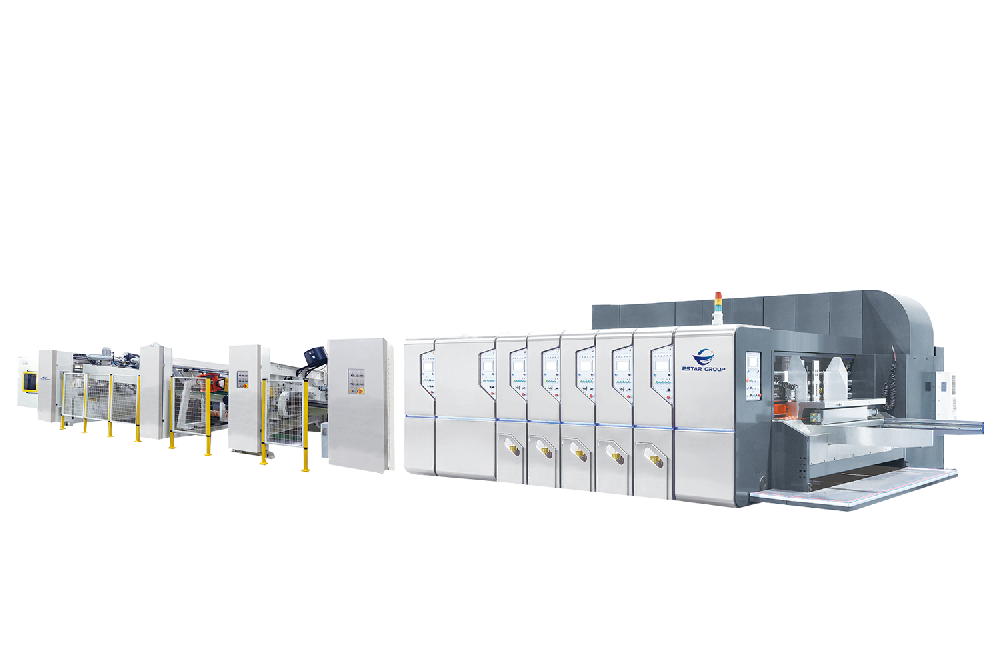

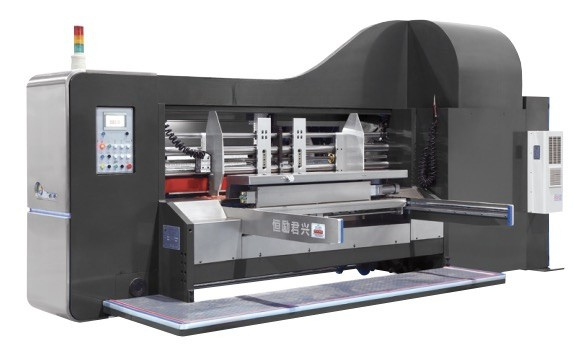

Flexo Printer Inline Folder Gluer Machine

Folder Gluer Inline Control,the main function can be adjusted by data input or order management system.

ENQUIRY

HOMEPRODUCTFLEXO PRINTER MACHINE

PRODUCT VIDEO

PRODUCT INTRODUCTION

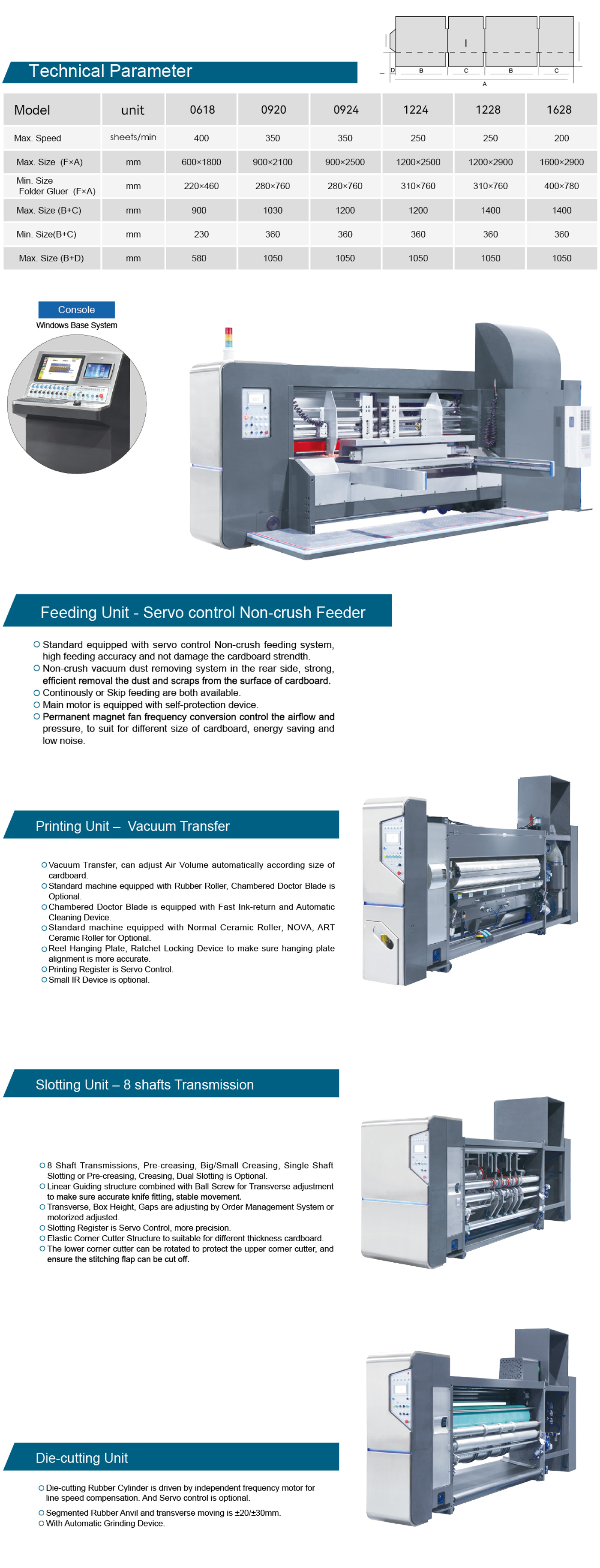

Features

• Folder Gluer Inline Control,The Main Function Can Be Adjusted By Data Input Or Order Management System.

• Max.Speed:350sheets/min.

• Top Loading Counter Ejector.

• Multi-groups Of Servo Motors Coordinate Action Single Stacks Quantities Can Be From 10-30 Cartons,And Max Can Reach To 35 Stacks Per Minute.

• Standard Equipped With Both Spray Glue System And Gluing Wheel System.

• Japanese Nitta Main Conveyor Belts.

• Can Easy Match With Pre-Feeder Or Automatic Strapping Machine,The Whole Line Can Be Operated By 2-4 Labors.

PRODUCT DETAIL

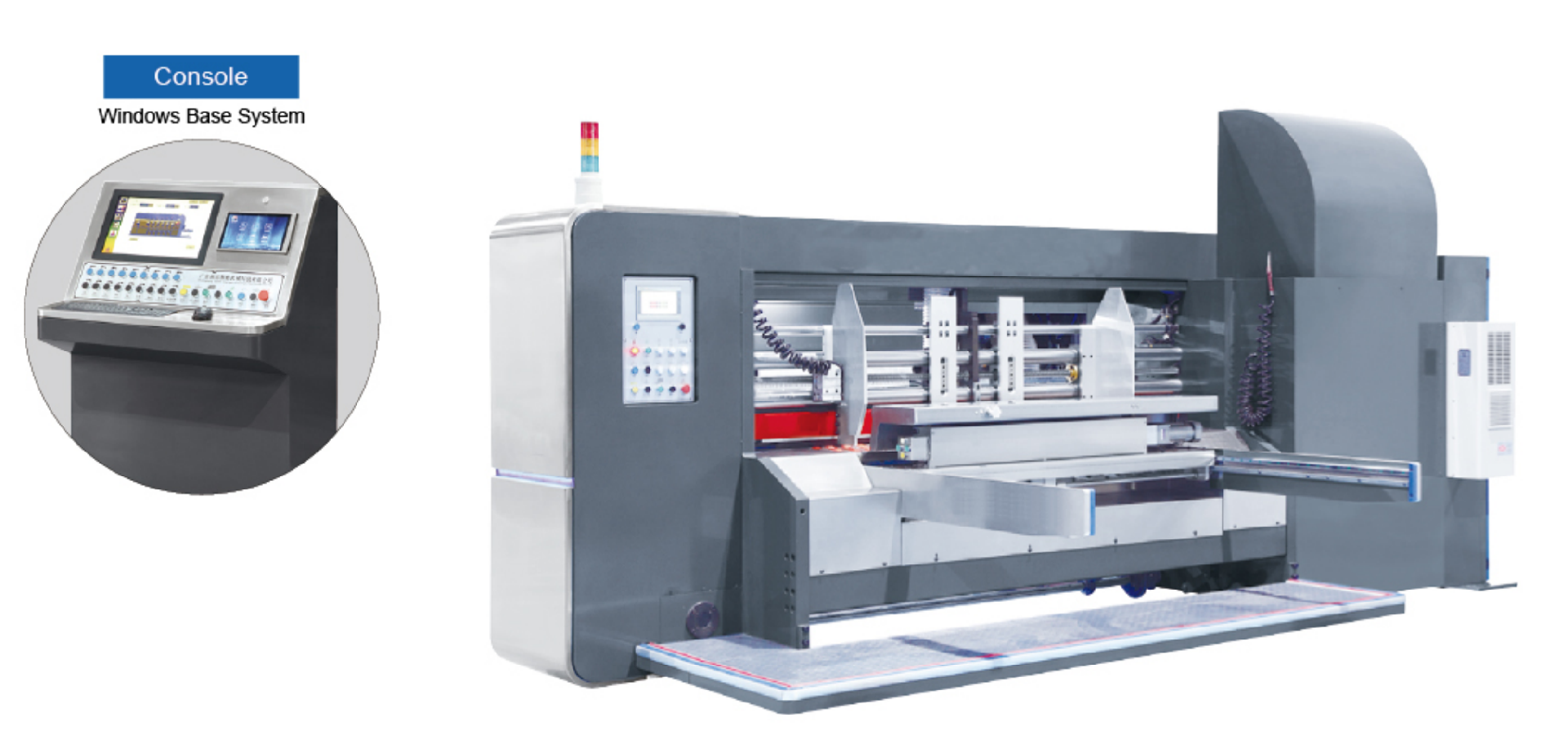

Feeding Unit -Servo Control Non-Crush Feeder

• Standard Equipped With Servo Control Non-Crush Feeding System,High Feeding Accuracy And Not Damage the Cardboard Strendth.

• Non-Crush Vacuum Dust Removing System In The Rear Side,Strong,Efficient Removal The Dust And Scraps From The Surface of Cardboard.

• Continously Or Skip Feeding Are Both Avalable.

• Main Motor Is Equipped With Self-Protection Device.

• Permanent Magnet Fan Frequency Conversion Contol The Airflow And Pressure,To Suit For Different Size Of Cardboard,Energy Saving And Low Noise.

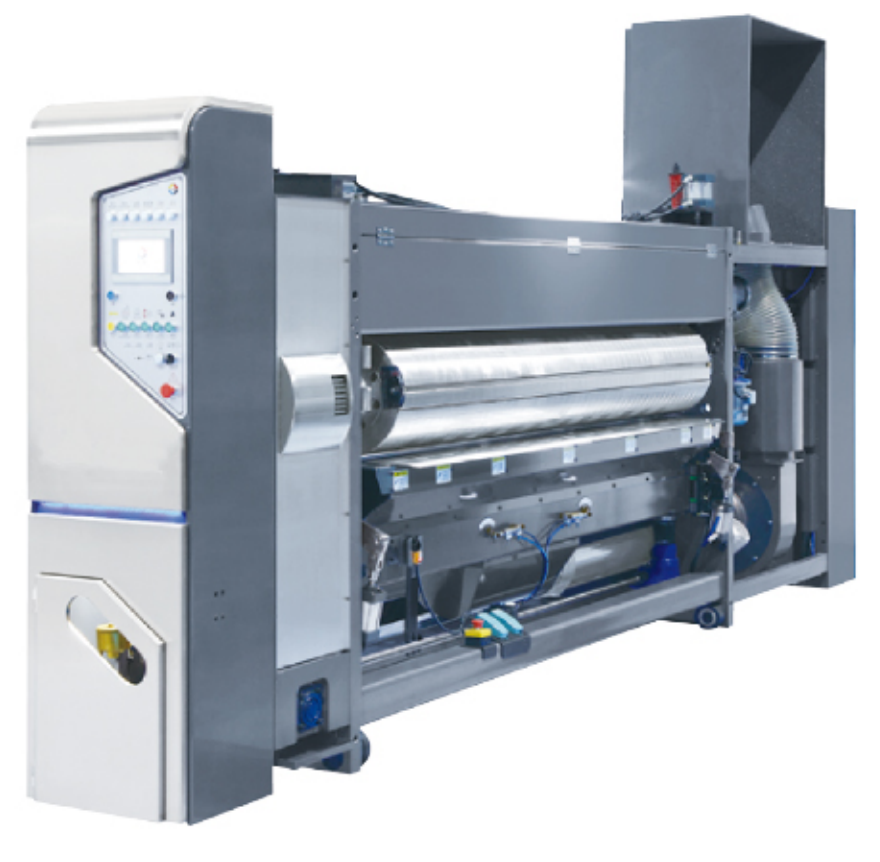

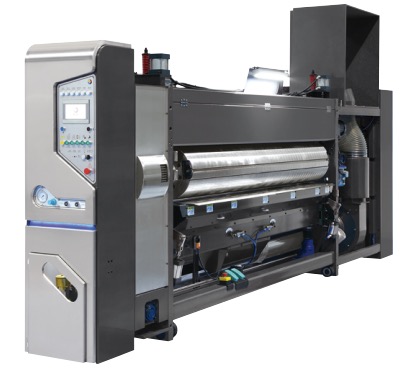

Printing Unit-Vacuum Transfer

• Vacuum Transfer,Can Adjust Air Volume Automatically According Size Of Cardboard.

• Standard Machine Equipped With Rubber Roller,Chambered Doctor Blade Is Optional.

• Chambered Doctor Blade Is Equipped With Fast Ink-Return And Automatic Cleaning Device.

• Standard Machine Equipped With Normal Ceramic Roller,Nova,Art Ceramic Roller For Optiona Reel Hanging Plate,Ratchet Locking Device To Make Sure Hanging Plate Alignment Is More Accurate.

• Printing Register Is Servo Control.

• Small IR Device Is Optional.

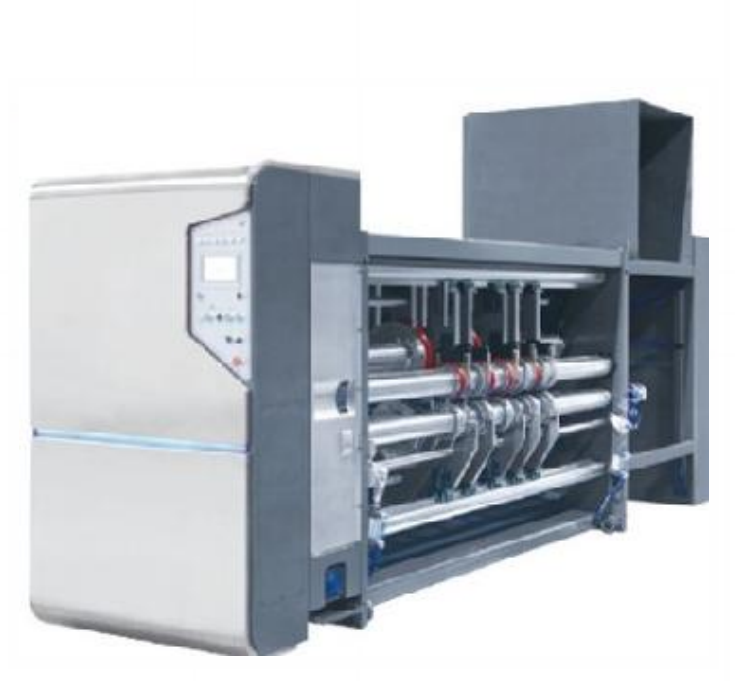

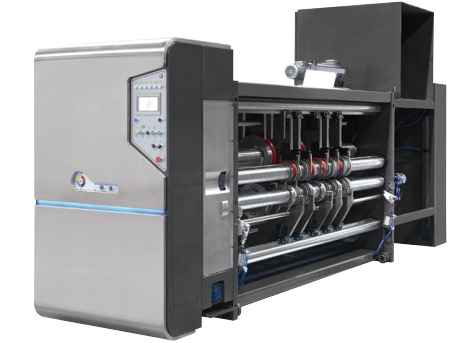

Slotting Unit-8 shafts Transmission

• 8 Shaft Transmissions,Pre-creasing,Big/Small Creasing,Single Shaft Slotting Or Pre- creasing,Creasing,Dual Slotti ng Is Optional.

•Linear Guiding Structure Combined With Ball Screw For Transverse Adjustment To Make Sure Accurate Knife Fitting,Stable Movement.

• Transverse Box Height Gaps Are Adjusting By Order Management System Or Motorized Adjusted.

• Slotting Register Is Servo Control,More Precision.

• Elastic Corner Cutter Structure To Suitable For Different Thickness Cardboard.

• The Lower Corner Cutter Can Be Rotated To Protect The Upper Comer Cutter,And Ensure The Stitching Flap Can Be Cut Off.

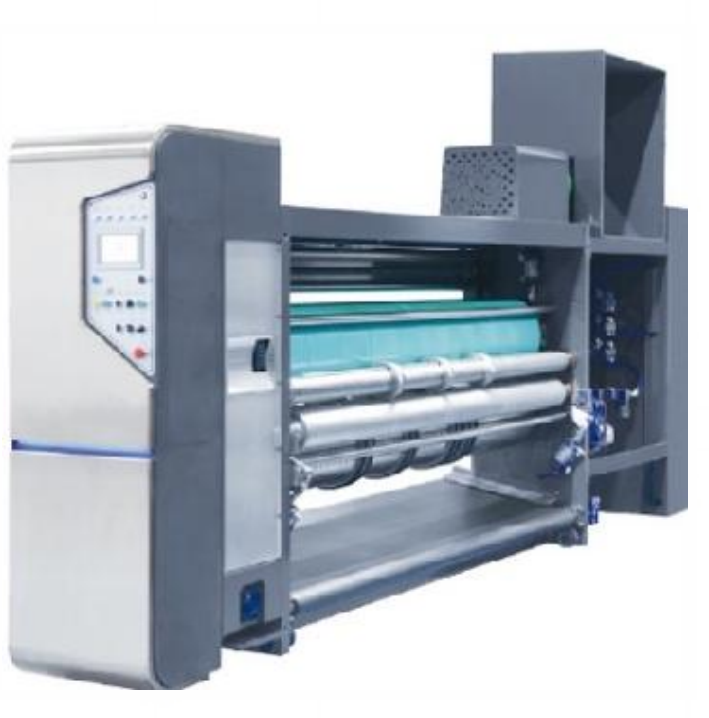

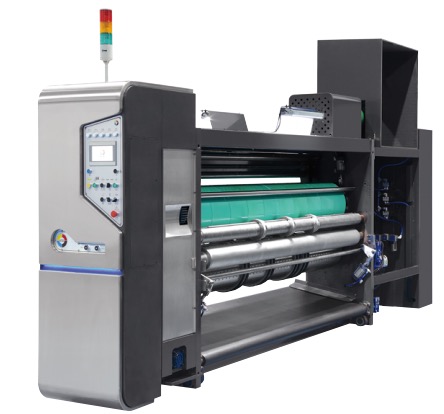

Die-Cutting Unit

• Die-Cutting Rubber Cylinder Is Driven By Independent Frequency Motor For Line Speed Compensation.And Servo Control Is Optional.

• Segmented Rubber Anvil And Transverse Moving Is±20/±30mm.

• With Automatic Grinding Device.
